PASTE

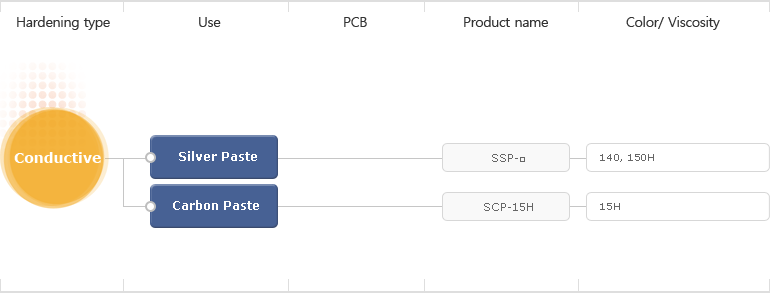

Conductive Paste

Silver Paste SSP-140 is suitable for EMI Shielding. It has excellent flexibility and adhesion on PET, PI and Copper-foil.
STP-170 can be applied to ITO and PET film, and suitable for high resolution touch panel.
The low resistivity and excellent adhesion to copper foil are most suitable for cross over circuit of rigid PCB or contact keyboard.

Division	SSP-140	STP-170	SCP-10H	SCP-20H	SCP-30H
Color	Silver Gray		Black
Viscosity(25˚C, VT-04F)PS	200 ~ 300	500~1200	300 ~ 500
Thermal Curing Condition	130˚C X 30 min / 150˚C X 20 min
Resolution	-	40 ~ 50 ㎛	-
Sheet Resistance	80 ~ 100 mΩ	50 ~ 80 mΩ	＜ 15Ω	＜ 20Ω	＜30Ω
Adhesion	100/100 (PET) 100/100 (PI) 100/100 (Cu)	100/100 (PET) 100/100 (PI) 100/100 (ITO)	100/100 (Cu)
Shelf life	3 months(≤20˚C), 6months(≤10˚C)		3 Months(≤20˚C)
Major Features	EMI Shielding	Touch Panel Fine pattern	Key contact		General type

* Packing Unit : 1 Kg
